Chapter 2 · Therapies · Case 5

Tachycardia treated by an ATP burst

Patient

  • A 66-year-old man implanted with Platinium DR for dilated ischemic heart disease without prior infarction and ejection fraction of 28%, narrow QRS, in secondary prevention. Follow-up control. Asymptomatic patient.

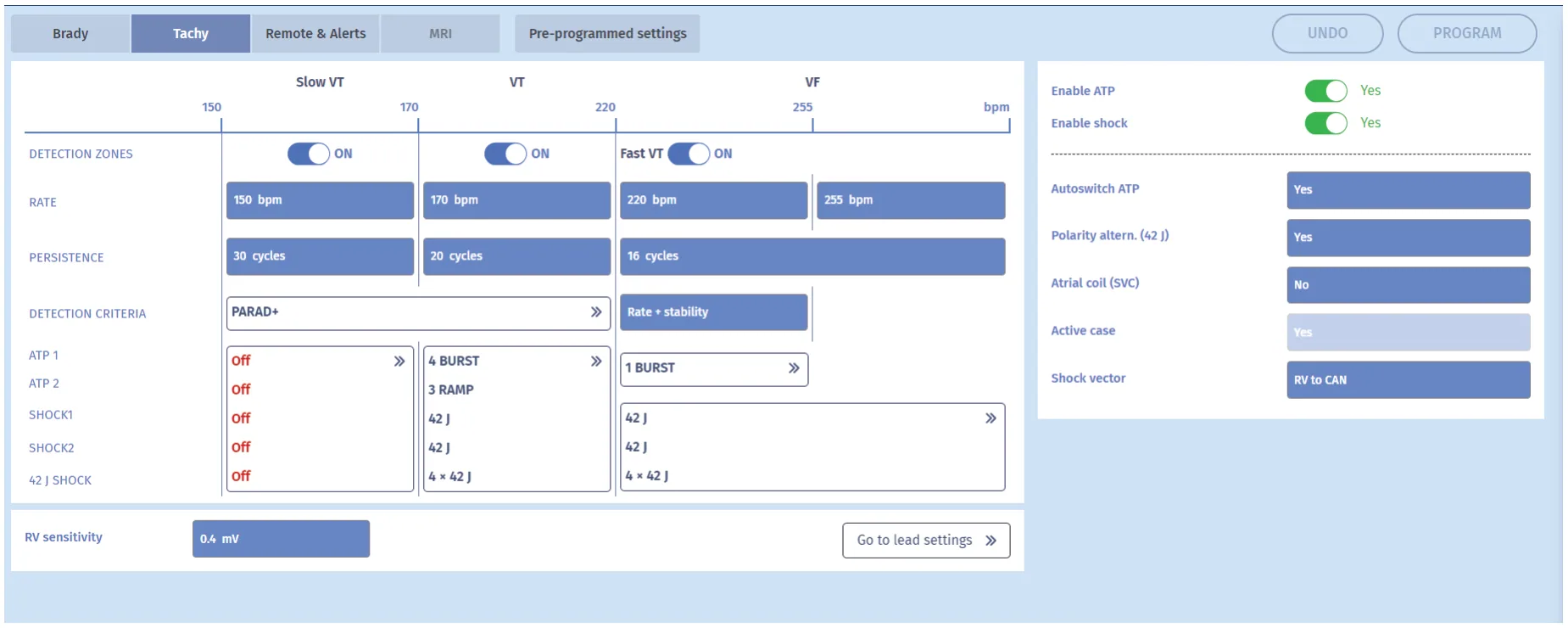

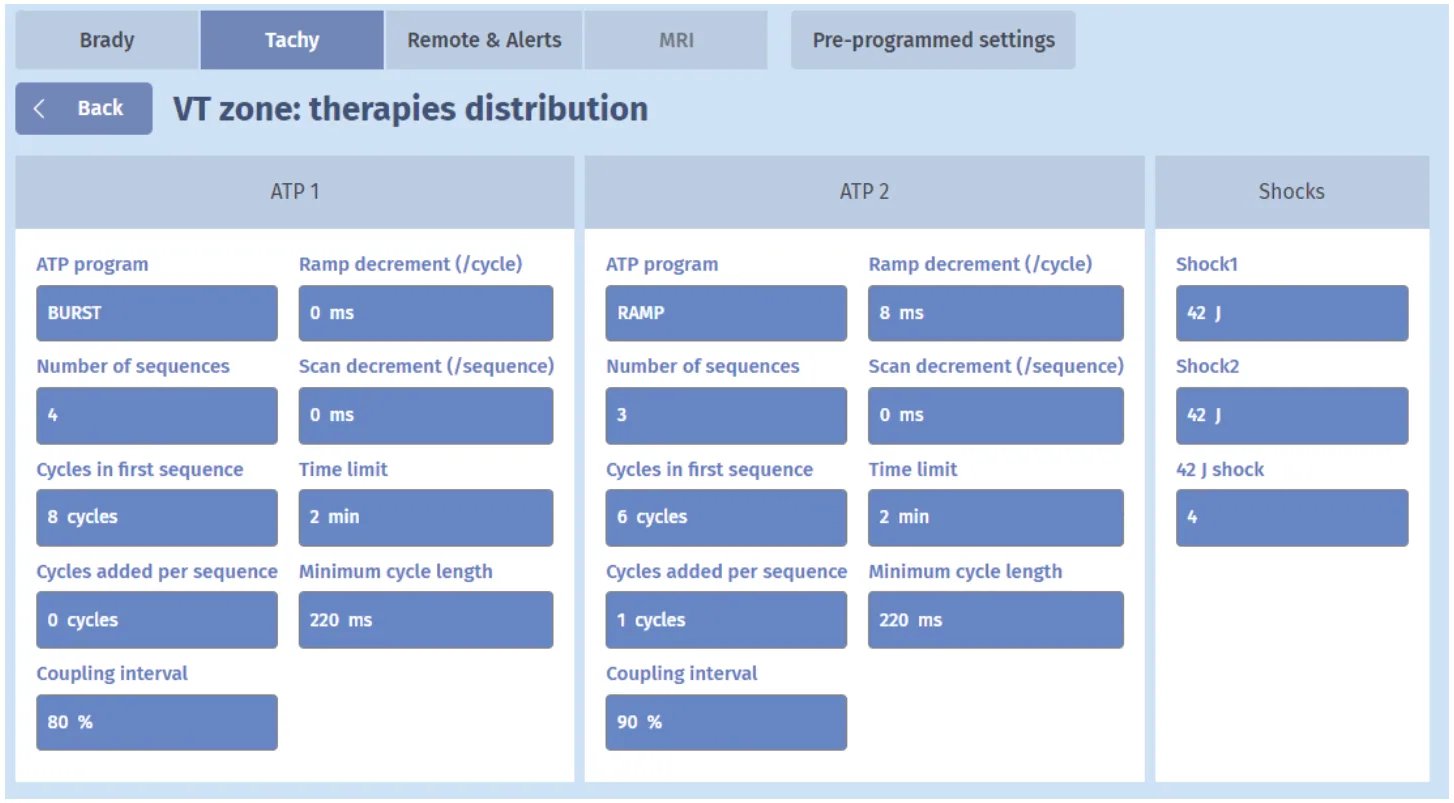

Programming

MicroPort ICD, Programming — Tachycardia treated by an ATP burst
MicroPort ICD, Programming — Tachycardia treated by an ATP burst

EGM

MicroPort ICD, EGM — Tachycardia treated by an ATP burst

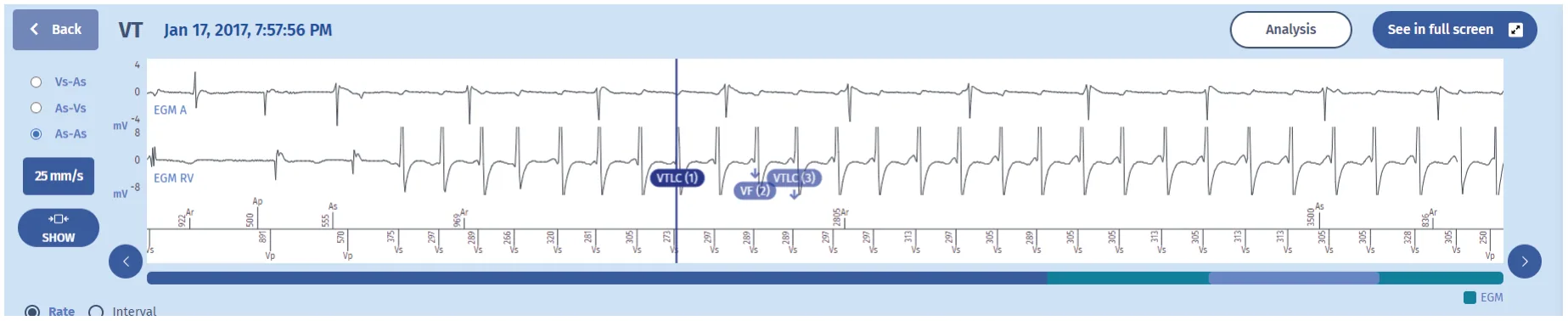

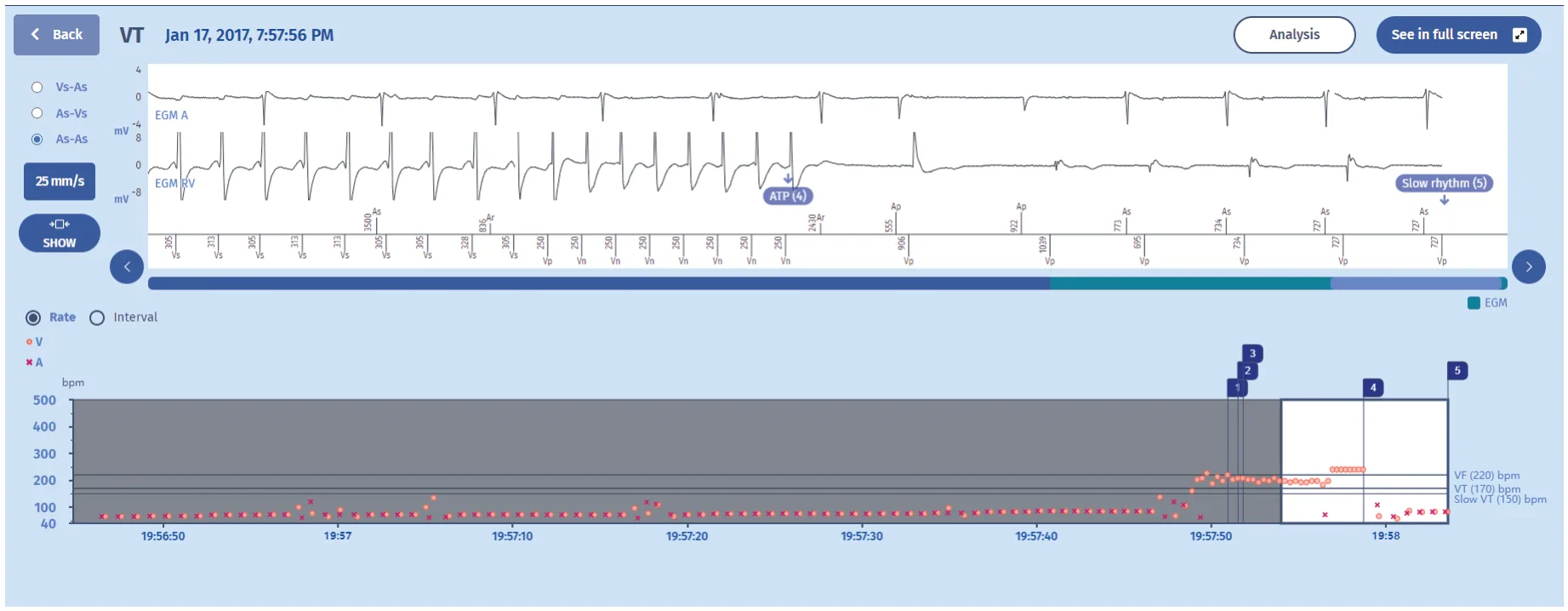

The following 2 EGMs highlight the episode; the first is the beginning, followed by the second EGM, both at 25 mm/sec.
MicroPort ICD, EGM — Tachycardia treated by an ATP burst

Your turn

Which observation is correct?

  1. Effective ATP burst in the Fast VT zone
  2. Effective ATP burst in the VT Zone
  3. The burst rate is determined by the last 4 cycles of the first VT diagnosis
  4. The burst rate is determined by the last 4 persistence cycles
  5. The VF cycles also increment the VT counter

Explanation

  1. The rhythm is sinus and stable.
  2. A tachycardia begins, ventricular in nature since the atrial rate remains slow, with some cycles in the VF zone, although the rhythm is predominantly VT with a first VTLC marker, and therefore, a persistence of 20 cycles is started.
  3. Then, after 3 cycles, the rhythm becomes predominantly VF, hence a VF persistence is started while the VT counter continues to be incremented by the VF marker.
  4. However an additional cycle triggers a return to VT majority (second VTLC marker), and remains as such throughout the persistence of 20 cycles
  5. The average of the last 4 persistence cycles is in the VT zone, and it is the first therapy in this zone that is called upon: a burst whose coupling interval is 80% of that of the tachycardia. The ATP cycles are all identical. Not all sinus waves are detected since falling in the post-ventricular atrial blankings.

Comments

A few operating rules of the MicroPort algorithms:

  1. The first two tachycardia cycles in the VT zone are excluded in the initial counting of events.
  2. The majority rhythm of the initial 6/8 cycles determines the diagnosis of tachycardia and the number of triggered persistence cycles.
  3. VF majority cycles (and the majority they generate) increment the persistence counter of the lower zones
  4. The average rate of the last 4 persistence cycles determines the type of therapy that will be initiated based on the zone in which the ventricular tachycardia is located.

The first triggered therapy is the first therapy programmed for the designated zone of the tachycardia, or that previously determined by the Autoswitch ATP function.

Correct Answers - n° 2, 4 and 5

Take-home Message

The triggered therapy is dependent on the average rate of the last 4 persistence cycles that defines the zone in which the arrhythmia is classified, primarily for the VT and Slow VT zones, and in conjunction with other criteria for the FVT zone.

Practice out loud

Just describe the tracing. What do you think is going on? Describing the numbers can help.

00:00

From Implantable Cardioverter Defibrillator — Clinical cases from patients with MicroPort™ ICDs by M. Strik, A. Thiyagarajah, S. Ploux, P. Bordachar, P. Ritter. Published by Cardiocases. Each case is a question on real device interrogations: pick your answer, check it, then read the authors’ interpretation. Tap any figure to open it full screen.
